100-300w Trolley Pulse Laser Cleaning Machine
This is a Mini pulse laser cleaning machine, small and light, easy to carry, you can go out to different construction sites, power 100w,200w, 300w, you can choose different control systems, simple operation, is the best choice for users.
Parameter | Unit | 100 | 200 | 300 |
Cleaning efficiency | ㎡/h | 2.5 | 5 | 9 |
Laser type | / | Pulsed fiber | ||
Pulse width | NS | 2-500 | 13-500 | 2-500 |
Central wavelength | NM | 1064 | ||
Lasing mode | Single | Single/Multi | Single/Multi | |
Max power output | W | 100W | 200W | 300W |
Fiber beam quality | M2 | ＜2 | ＜1.5 | ＜2 |
Fiber length | M | 3/5 | 5 | 5 |
Laser pulse frequency | KHZ | 1-4000 | 1-3000 | 1-4000 |
Run-length | MM | 100-145 | 100-175 | 100-200 |
Scan length | MM | 100-145 | 100-175 | 100-200 |
Laser protection class | / | Lv. 4 | ||
Laser isolator type | / | QCW | ||
Type of cooling | / | Air cooling | ||
Supply voltage | V | 110/220 | ||
Supply current | A | ＞10 | ||
Total power | W | 800 | 1200 | 1600 |

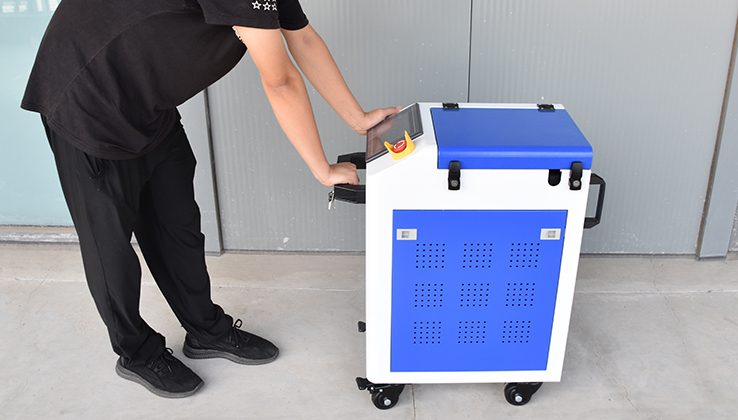

Mini car design, small & light, easy take to outside. Meet customers requirements.
The system is stable and reliable, compact structure, accurate optical path, good sealing, delicate appearance, light weight and easy installation.
High security, with fingerprint & password login, temperature protection, motor abnormal protection, off-line protection and other multi-level security mechanism, with idle automatic sleep function. Supports multiple language Settings.

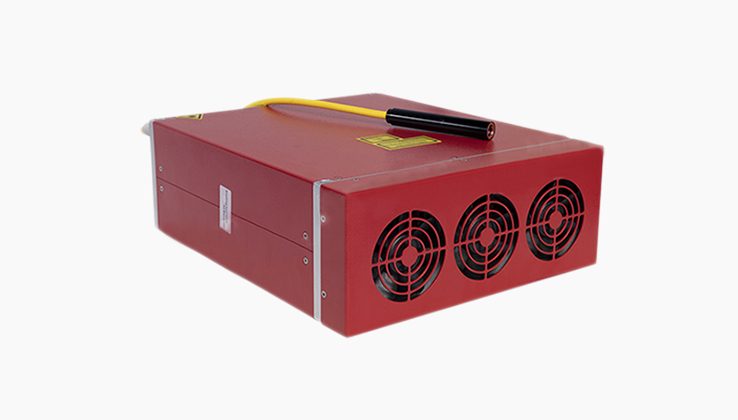

The Geput CL series is a high power fiber laser using a direct electrically modulated semiconductor laser as a seed source (MOPA) solution, with perfect laser characteristics and good pulse shape control ability, using a lightweight laser output head, while maintaining the excellent performance of laser anti-high reaction, which has outstanding advantages in laser cleaning.
