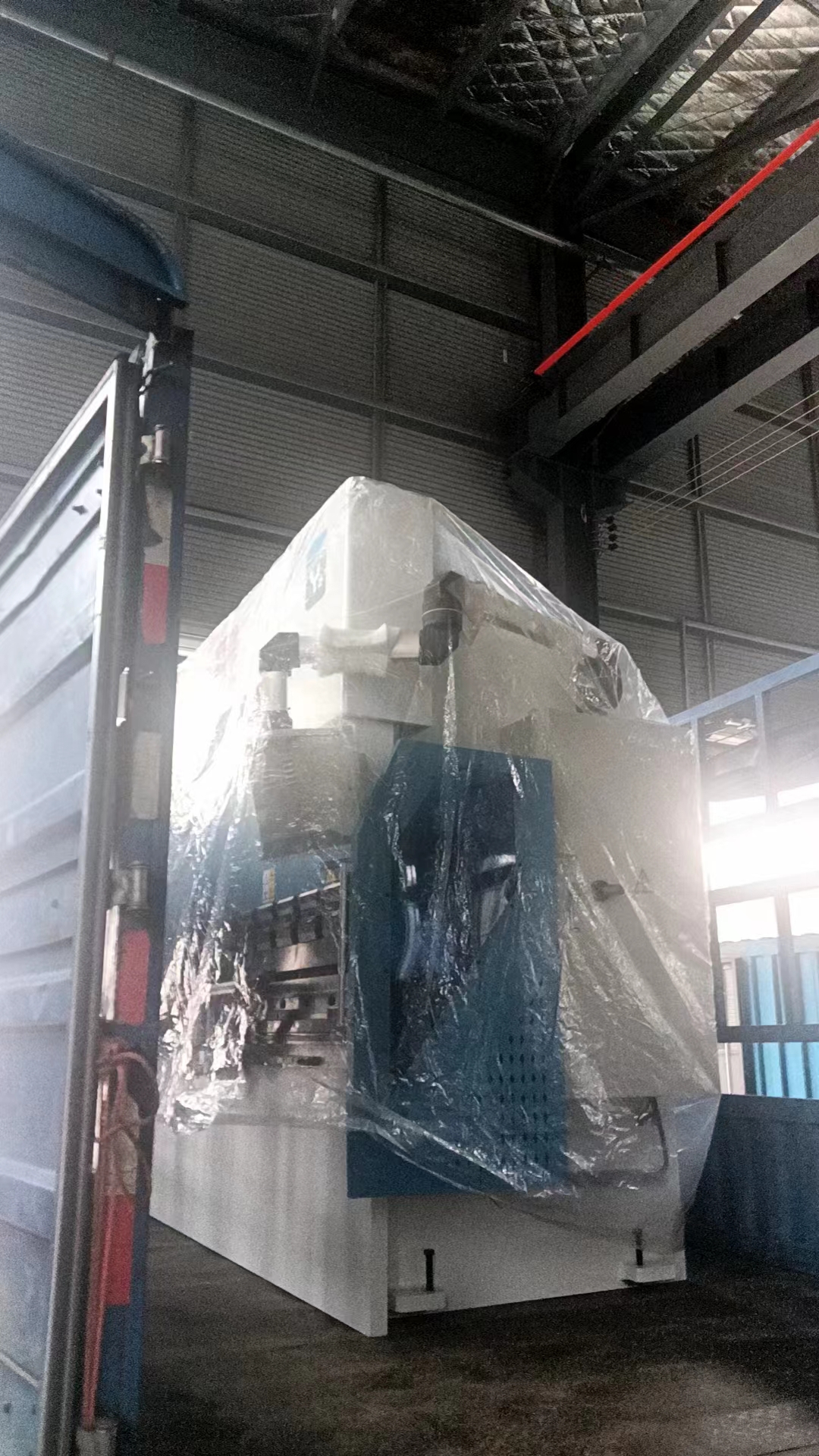

70T/2500mm electro hydraulic cnc bending machine delivered to customer
Jun,06,2024
70T/2500mm electro hydraulic cnc bending machine delivered to customer
Jinan Lukcy CNC Full Automatic Electro-Hydraulic CNC Press Brake main models:
Model | Bending Force | Bending Length | Upright Distance | Throat Depth | Stroke | Opening Height | Main Motor | Weight | Overall Dimensions |
WE67k | Kn | mm | mm | mm | mm | mm | Kw | Ton | L×W×H mm |
40t/1600 | 400 | 1600 | 1300 | 400 | 150 | 480 | 5.5 | 4 | 1800*1200*1800 |
63t/2500 | 630 | 2500 | 1960 | 400 | 150 | 480 | 5.5 | 5.5 | 2850*1750*2350 |
80t/3200 | 800 | 3200 | 2600 | 400 | 200 | 480 | 7.5 | 6.7 | 3850*1850*2550 |
