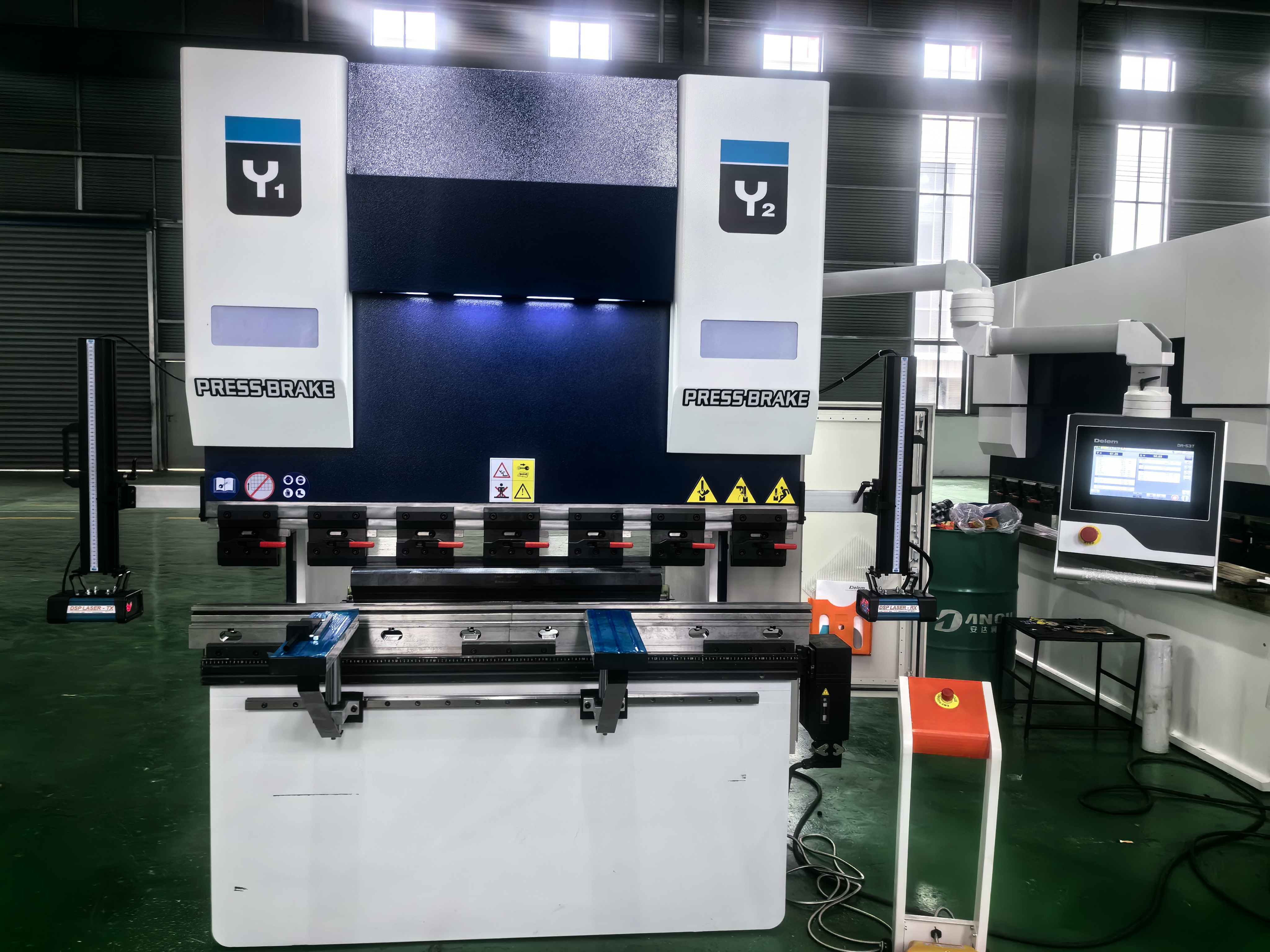

Jinan Lukcy CNC Full Automatic Electro-Hydraulic CNC Press Brake main models:
Model | Bending Force | Bending Length | Upright Distance | Throat Depth | Stroke | Opening Height | Main Motor | Weight | Overall Dimensions |
WE67k | Kn | mm | mm | mm | mm | mm | Kw | Ton | L×W×H mm |
40t/1600 | 400 | 1600 | 1300 | 400 | 150 | 480 | 5.5 | 4 | 1800*1200*1800 |
63t/2500 | 630 | 2500 | 1960 | 400 | 150 | 480 | 5.5 | 5.5 | 2850*1750*2350 |
80t/3200 | 800 | 3200 | 2600 | 400 | 200 | 480 | 7.5 | 6.7 | 3850*1850*2550 |
110t/3200 | 1100 | 3200 | 2600 | 400 | 200 | 480 | 7.5 | 7.5 | 3800*1800*2600 |
110t/4000 | 1100 | 4000 | 3200 | 400 | 200 | 480 | 7.5 | 10 | 4650*1850*2700 |
130t/3200 | 1300 | 3200 | 2600 | 400 | 200 | 480 | 11 | 8.5 | 3850*1850*2600 |
130t/4000 | 1250 | 4000 | 3200 | 400 | 200 | 480 | 11 | 11 | 4610*1850*2700 |
170t/3200 | 1700 | 3200 | 2600 | 400 | 200 | 480 | 11 | 10 | 3900*1900*2600 |
170t/4000 | 1700 | 4000 | 3200 | 400 | 200 | 480 | 11 | 12 | 4650*1900*2700 |
200T/3200 | 2000 | 3200 | 2600 | 400 | 200 | 480 | 15 | 11.5 | 3900*1900*2700 |
200T/4000 | 2000 | 4000 | 3200 | 400 | 200 | 480 | 15 | 12.5 | 4700*1900*2700 |
250T/3200 | 2500 | 3200 | 2600 | 400 | 200 | 480 | 15 | 13.5 | 3900*2100*2800 |
250T/4000 | 2500 | 4000 | 3300 | 400 | 200 | 480 | 15 | 15 | 4650*2100*2850 |
320T/3200 | 3200 | 3200 | 2600 | 400 | 200 | 480 | 22 | 18.5 | 3930*2110*3200 |
320T/4000 | 3200 | 4000 | 3200 | 400 | 200 | 480 | 22 | 21.5 | 4830*2110*3200 |
400T/4000 | 4000 | 4000 | 3200 | 400 | 320 | 600 | 30 | 27.5 | 4850*2450*3500 |
500T/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 41.5 | 6500*2810*4500 |
600T/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 49.5 | 6500*2910*5100 |
800T/6000 | 8000 | 6000 | 4720 | 700 | 400 | 600 | 55 | 74 | 6900*2950*5300 |
